Implicit Surfaces for Grid Data


AIR 6.0 introduces a new implicit surface primitive for rendering grid data as an isosurface.

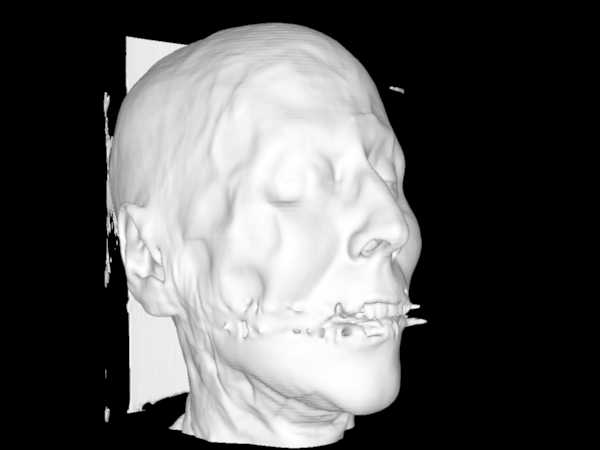

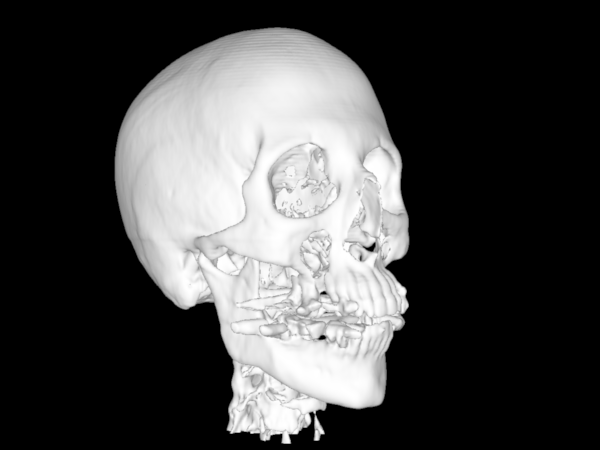

The images below were generated from data converted from the Stanford volume data archive.

Sample rib:  cthead.zip (10 mb)

The original data consists of 113 slices at a resolution of 256x256 per slice.
